SELECTION FOCUS
Questions that change the direction.
- Ceramic composition and any coating or metallisation
- Rectangular, circular or irregular geometry; fragile features
- Optical appearance, edge-chip limit and surface-damage criteria
Ceramic workholding · Steel & Stainless Carriers
Stainless Carriers for Ceramic & Transparent-Ceramic Parts
Flat ceramic plates and transparent-ceramic windows require pocket layouts that protect brittle edges while allowing repeatable two-face processing.
HOW THIS PRODUCT IS JUDGED
Connect the physical product to its process function.
Transparency is not a material grade. Alumina, zirconia and transparent optical ceramics can require different abrasive routes and cleanliness checks. Direct metal contact must be compared with protected-contact alternatives.RFQ & DRAWING FIELDS
Evidence needed before release.
- Controlled workpiece drawing and incoming/finished thickness
- Pocket radii, clearance and load orientation
- Material and finish of every workpiece-contact edge
- Trial inspection: chips, scratches, flatness and parallelism
PRODUCT REFERENCE
Confirm the configuration for your part.

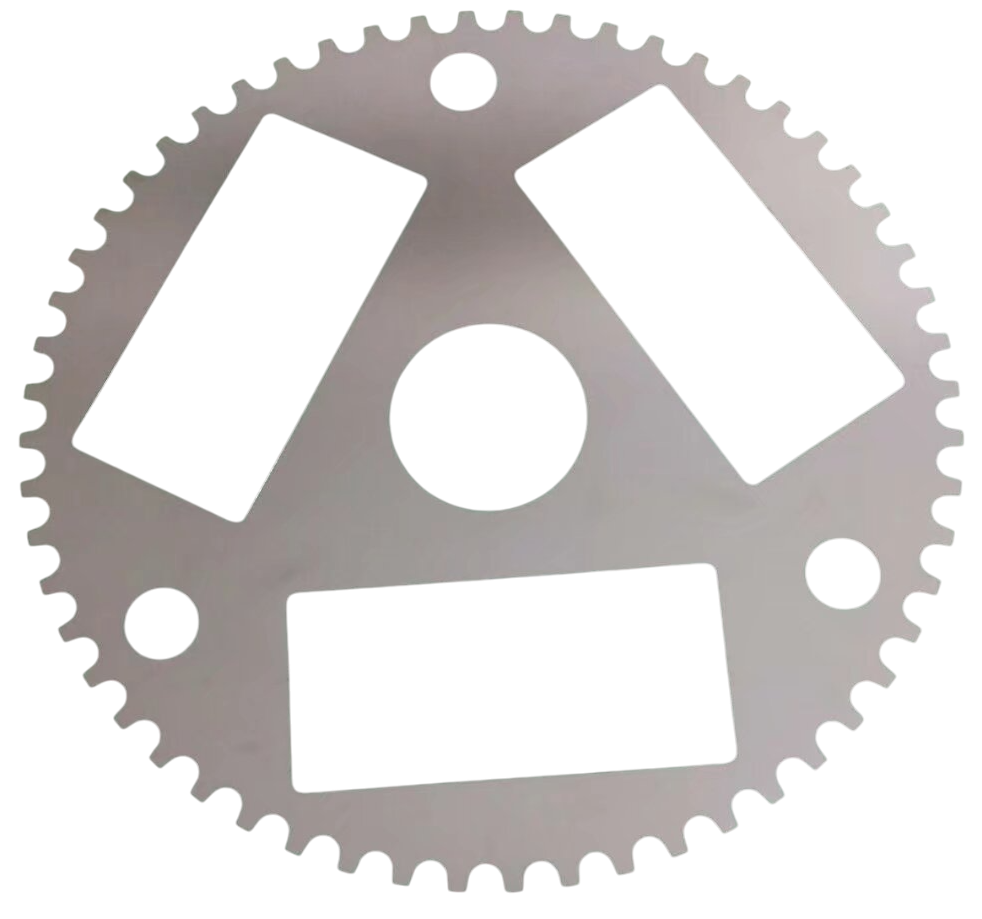

Stainless rectangular-pocket example; it does not certify a specific transparent-ceramic process.Do not submit confidential customer drawings until a secure project channel is confirmed.FROM SELECTION TO FIRST ARTICLE
A practical review sequence for this product family.
Material choice
Specify the alloy or review candidate materials against stiffness, wear and the actual wet chemistry.
Drawing definition
Confirm carrier outside diameter, tooth form, pocket map, thickness and the agreed burr limit.
Release checks
Agree the method for thickness and flatness checks, and inspect the pocket and tooth edges before a process trial.
Order-specific dimensions, material grades and acceptance values are recorded in the approved specification. This sequence is selection guidance, not a pre-validated process recipe.
PUBLIC CLAIM BOUNDARY
Typical direction is not a performance guarantee.
Dimensions, materials, removal rate, roughness, life and compatibility are published only when supported by an approved drawing, material record or project-specific validation. Unverified label examples, third-party photographs and customer pricing remain internal references.
APPLICATION ROUTES
Where this product may enter the process.
ENGINEERING KNOWLEDGE
Read before selecting the specification.
RELATED TYPES IN STEEL & STAINLESS CARRIERS
Compare neighbouring constructions.
Blue steelBlue-Steel Thin Workpiece CarriersThin single-sheet carriers for applications that need a stiff machine interface and drawing-controlled pockets.Stainless / PHStainless & Precipitation-Hardening CarriersCorrosion-aware metal carrier directions for wet lapping and polishing environments.Machine family2B–6B Lapping Carrier ReferencesA small-machine review route covering legacy 2B, 2DP, 2S, 3B, 3DP, 3S, 4B, 5B/DP/S, 6B and 6DP references.Machine family7DP–16B Lapping Carrier ReferencesA medium-machine review route covering common 7DP, 9B/DP/S, 10.5B, 11DP, 12B/DP/S, 13-series, 14DP, 15-series and 16B references.
