SELECTION FOCUS
Questions that change the direction.
- Workpiece hardness and removal target
- Abrasive vehicle and charging route
- Flatness maintenance method
Free-abrasive plate · Lapping & Grinding Plates
Cast-Iron Lapping Plates
Cast-iron working plates for free-abrasive lapping routes where plate condition, charging, groove and conditioning are controlled.
HOW THIS PRODUCT IS JUDGED
Connect the physical product to its process function.
The plate is a reference surface and abrasive carrier. Grade, hardness, groove, charging and conditioning affect removal and the geometry transferred into the workpiece.RFQ & DRAWING FIELDS
Evidence needed before release.
- Plate OD/ID and thickness
- Material grade and hardness
- Groove or plain-face drawing
- Flatness, runout and inspection
PRODUCT REFERENCE
Confirm the configuration for your part.

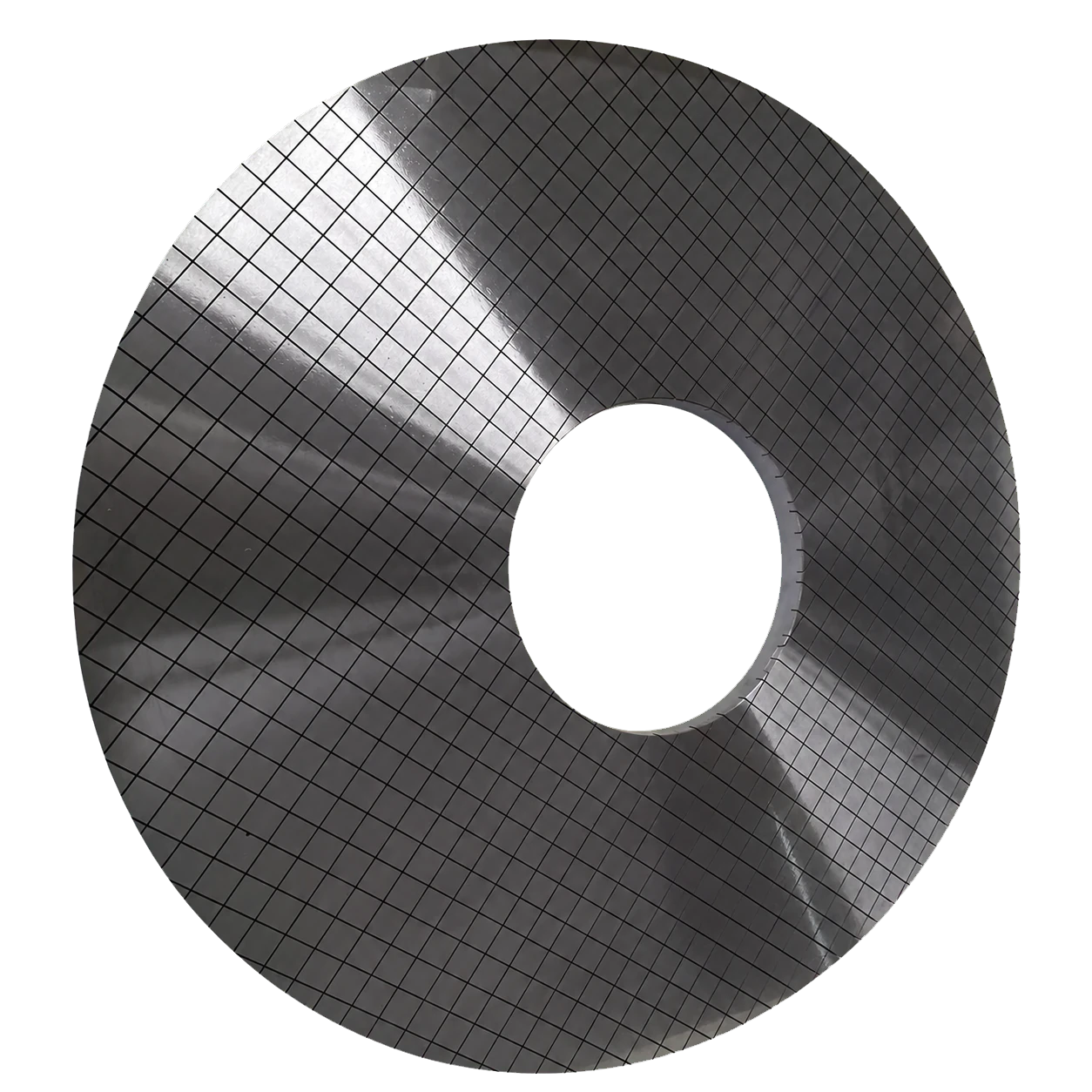

Whole plate, face texture macro, groove profile, flatness inspection and machine installation.Do not submit confidential customer drawings until a secure project channel is confirmed.PUBLIC CLAIM BOUNDARY
Typical direction is not a performance guarantee.
Dimensions, materials, removal rate, roughness, life and compatibility are published only when supported by an approved drawing, material record or project-specific validation. Unverified label examples, third-party photographs and customer pricing remain internal references.
APPLICATION ROUTES
Where this product may enter the process.
ENGINEERING KNOWLEDGE
Read before selecting the specification.
RELATED TYPES IN LAPPING & GRINDING PLATES
Compare neighbouring constructions.
Groove geometryRadial-Groove Lapping PlatesRadial channel layouts developed for liquid transport and debris evacuation on the specific plate and machine.Groove geometryCross-Hatched Lapping PlatesCross-grooved plate faces for controlled abrasive distribution, contact renewal and debris transport.Low-hardness plateGlass Lapping PlatesPlain or grooved glass-plate directions for selected softer compound-semiconductor and optical finishing routes.Wear-resistant plateCeramic Lapping PlatesCorrosion-free, wear-resistant plate directions for processes that justify the hardness and machining cost.
DRAWING · SAMPLE · PROCESS EVIDENCE
