SELECTION FOCUS
Questions that change the direction.
- Pad construction and desired texture
- Abrasive size and exposure
- Ring pressure and path
Pad conditioning · Conditioning Rings & Wheels

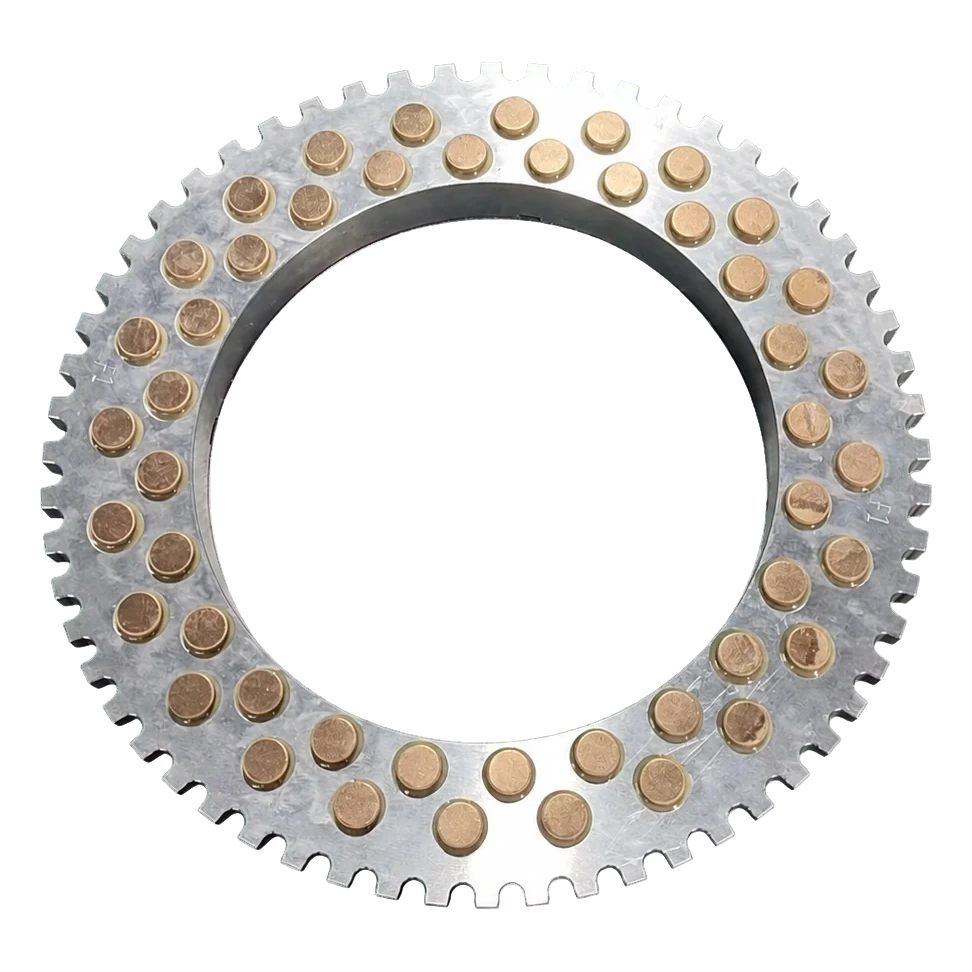

Electroplated Diamond Conditioning Rings
Electroplated-abrasive rings for renewing selected PU, diamond-pad or porous-cloth surfaces.
HOW THIS PRODUCT IS JUDGED
Connect the physical product to its process function.
Abrasive exposure, plating retention, ring geometry and pad response are matched to the conditioning objective and cleaning sequence.RFQ & DRAWING FIELDS
Evidence needed before release.
- Ring and mounting geometry
- Abrasive type/size
- Plating specification
- Conditioning/cleaning validation
PRODUCT REFERENCE
Confirm the configuration for your part.
Full ring, abrasive macro at three positions, side profile and before/after pad texture.Do not submit confidential customer drawings until a secure project channel is confirmed.PUBLIC CLAIM BOUNDARY
Typical direction is not a performance guarantee.
Dimensions, materials, removal rate, roughness, life and compatibility are published only when supported by an approved drawing, material record or project-specific validation. Unverified label examples, third-party photographs and customer pricing remain internal references.
APPLICATION ROUTES
Where this product may enter the process.
ENGINEERING KNOWLEDGE
Read before selecting the specification.
RELATED TYPES IN CONDITIONING RINGS & WHEELS
Compare neighbouring constructions.
Plate correctionCarbon-Steel Conditioning RingsDrawing-matched carbon-steel rings for maintaining selected cast-iron lapping plate faces.Pad correctionDiamond-Pellet Conditioning RingsSegmented diamond rings for controlled high-point correction and renewal of selected polishing contact surfaces.CMP dresserMicro-Diamond CMP Dressing DiscsPrecision diamond-array dresser directions for restoring defined polishing-pad texture in compatible CMP processes.NWS-CDT-2101NWS-CDT-2101 Drawing-Controlled Conditioning WheelsDrawing-Controlled Conditioning Wheels for lapping plate surfaces. Plate conditioning. Material options: QT600 ductile iron / HT250 grey iron / 45-grade steel; Geometry: Drawing-controlled contact face, thickness and mounting. Custom-made for the agreed process.
