SELECTION FOCUS
Questions that change the direction.
- Exact 32B machine and mating sun/ring gear information
- Removable insert or integrated contact structure
- Workpiece size, quantity, load plan and cleaning chemistry
32B machine review · Composite Lapping Carriers
32B Composite Lapping Carriers
Large-machine composite carrier development where tooth loading, contact material and assembled flatness must be reviewed together.
HOW THIS PRODUCT IS JUDGED
Connect the physical product to its process function.
A 32B label alone does not define the gear module, exact outside diameter or the workpiece pockets. Large-format panels need explicit joint, wear and handling checks before trial loading.RFQ & DRAWING FIELDS
Evidence needed before release.
- Controlled machine-interface and assembly drawing
- Metal body and contact-layer material specifications
- Assembled thickness, flatness, pocket and joint inspection
- First-article engagement, handling, wet-cycle and wear checks
PRODUCT REFERENCE
Confirm the configuration for your part.

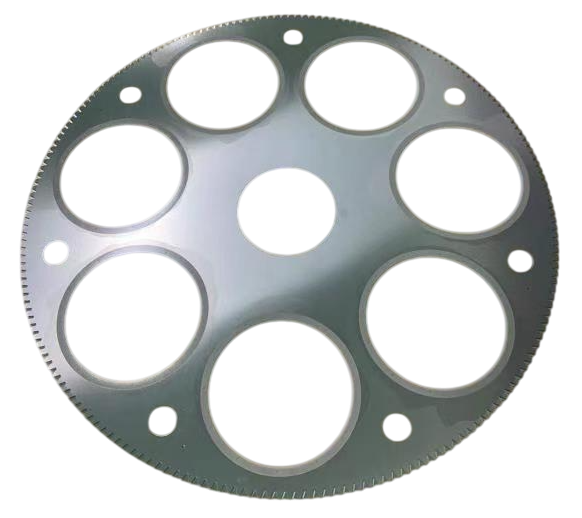

Composite product-range photo; size and attachment are not inferred from the image.Do not submit confidential customer drawings until a secure project channel is confirmed.FROM SELECTION TO FIRST ARTICLE
A practical review sequence for this product family.
Drive interface
Review metal-body tooth geometry and machine engagement separately from the polymer contact insert.
Workpiece contact
Confirm insert material, pocket outline, retention and the edges requiring protection.
First-article review
Check the drawing dimensions and insert fit, then record workpiece loading and trial feedback before repeat supply.
Order-specific dimensions, material grades and acceptance values are recorded in the approved specification. This sequence is selection guidance, not a pre-validated process recipe.
PUBLIC CLAIM BOUNDARY
Typical direction is not a performance guarantee.
Dimensions, materials, removal rate, roughness, life and compatibility are published only when supported by an approved drawing, material record or project-specific validation. Unverified label examples, third-party photographs and customer pricing remain internal references.
