SELECTION FOCUS
Questions that change the direction.
- Flat optical blank or curved optical surface?
- Workpiece scratch sensitivity and exposed-fibre restrictions
- Wet-soak stability and compatibility with the polishing chemistry
Optical workholding · Epoxy & Resin Carriers
Polymer & Laminate Carriers for Optical Glass
Non-metallic pocket interfaces for flat optical-glass blanks and lens blanks at a suitable planar processing stage.
HOW THIS PRODUCT IS JUDGED
Connect the physical product to its process function.
Laminate and solid polymer are different constructions. Glass-filled laminate edges, water uptake, thickness stability and the risk of embedded abrasive should be considered before choosing a contact material. This is not a universal fixture for curved lens surfaces.RFQ & DRAWING FIELDS
Evidence needed before release.
- Material grade: laminate or unfilled polymer, not colour alone
- Pocket dimensions, edge finish, carrier thickness and tooth geometry
- Cleaning method and trapped-abrasive inspection
- Trial criteria for scratches, edge damage and pocket wear
PRODUCT REFERENCE
Confirm the configuration for your part.

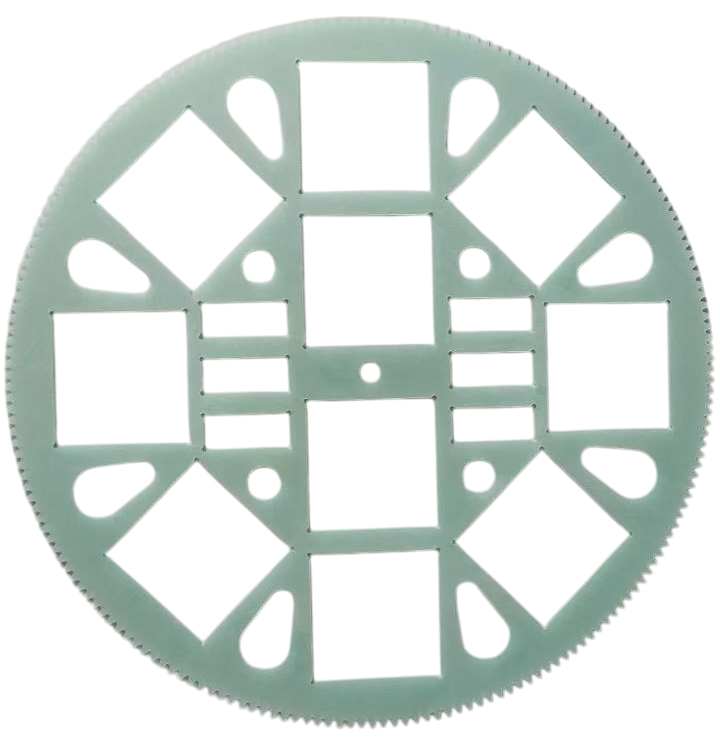

Laminate rectangular-pocket example from our carrier catalogue; not an exact lens configuration.Do not submit confidential customer drawings until a secure project channel is confirmed.FROM SELECTION TO FIRST ARTICLE
A practical review sequence for this product family.
Construction choice
Identify the resin, engineering polymer or laminate direction rather than treating every non-metal carrier as the same material.
Pocket definition
Use the controlled workpiece outline, loading direction and process conditions to agree clearance.
Trial review
Record dimensional checks and observations of contact marks, wear and loading behaviour under the agreed conditions.
Order-specific dimensions, material grades and acceptance values are recorded in the approved specification. This sequence is selection guidance, not a pre-validated process recipe.
PUBLIC CLAIM BOUNDARY
Typical direction is not a performance guarantee.
Dimensions, materials, removal rate, roughness, life and compatibility are published only when supported by an approved drawing, material record or project-specific validation. Unverified label examples, third-party photographs and customer pricing remain internal references.
